1936 Product Line Catalog G-9

Below is the visual index to the first of the large-format (8-1/2" x 11") Bliley catalogs from the 1930s. It was a great source of product and design information for Bliley customers. Pages 12, 13 and 18 contain a brief technical guide to crystal selection and oscillator design. This discussion was superseded a few years later by a Engineering Bulletin E-6, a 35 page booklet, titled "Frequency Control with Quartz Crystals". All pages are full-sized at 100 dpi resolution.


G9-Page 01
100 dpi (211K)

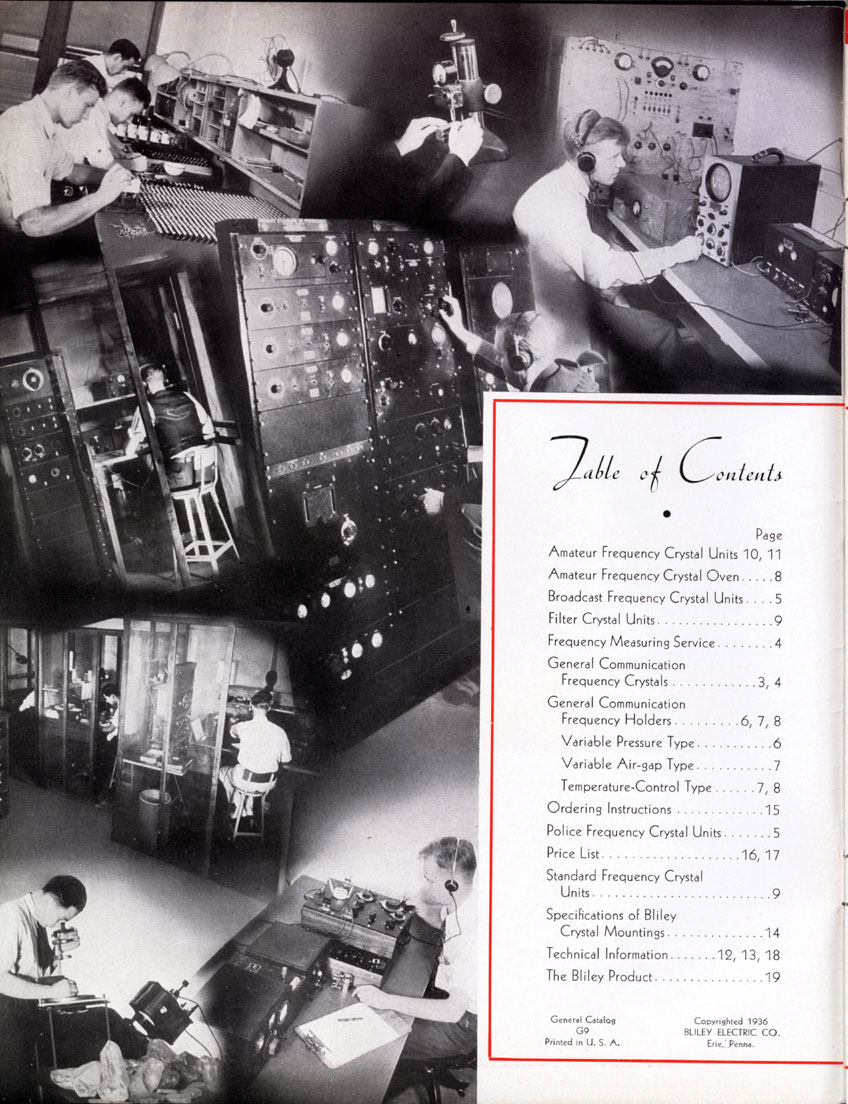

G9-Page 02
100 dpi (207K)

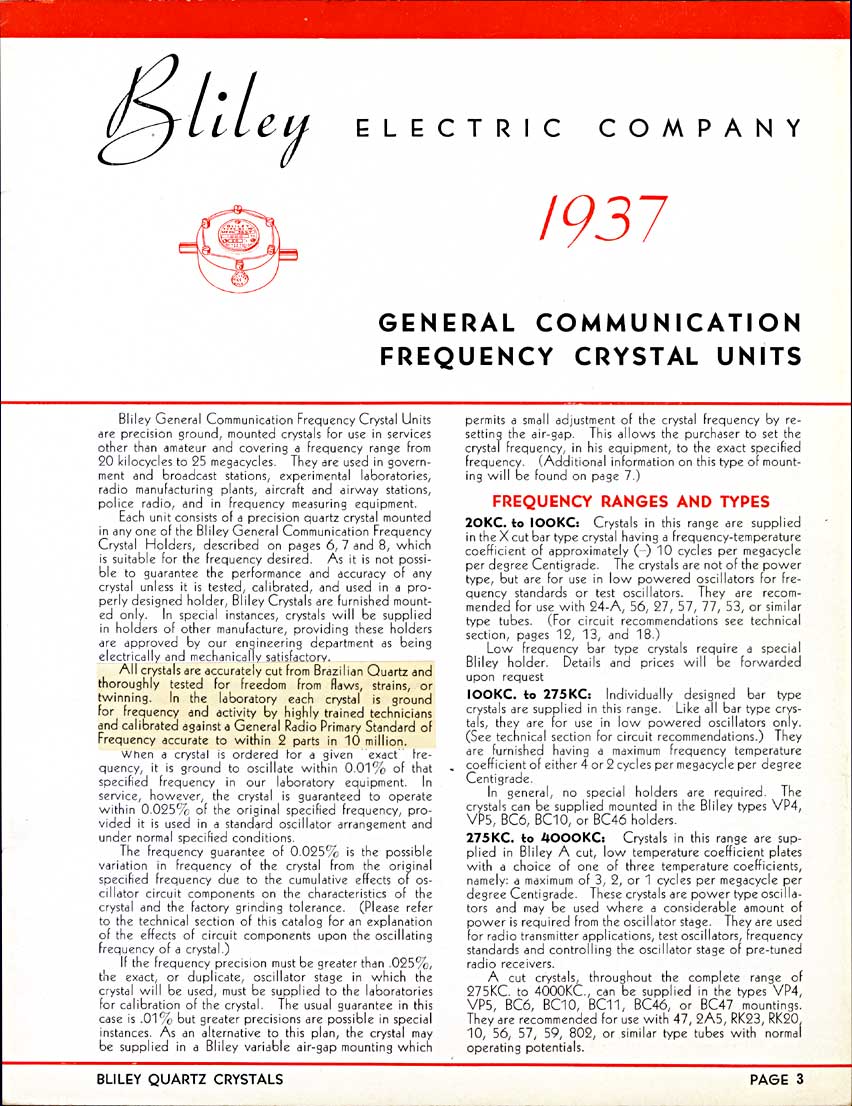

G9-Page 03
100 dpi (172K)

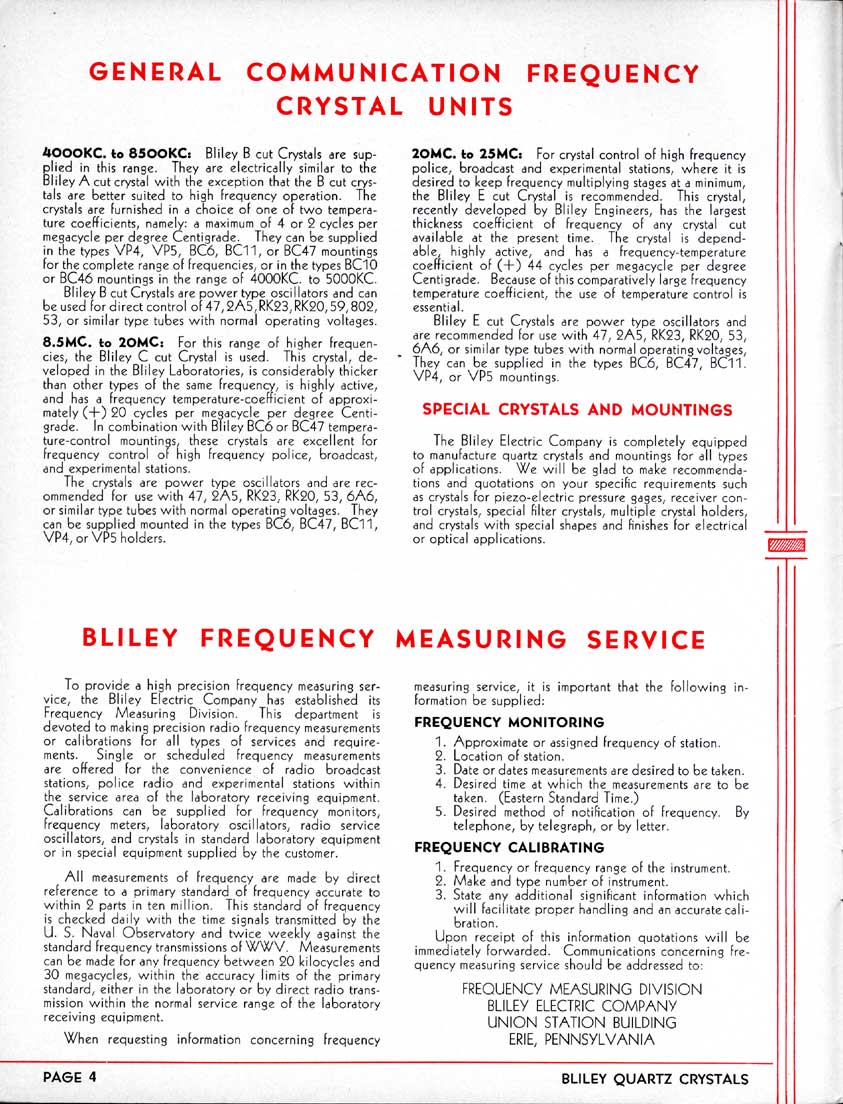

G9-Page 04
100. dpi (187K)

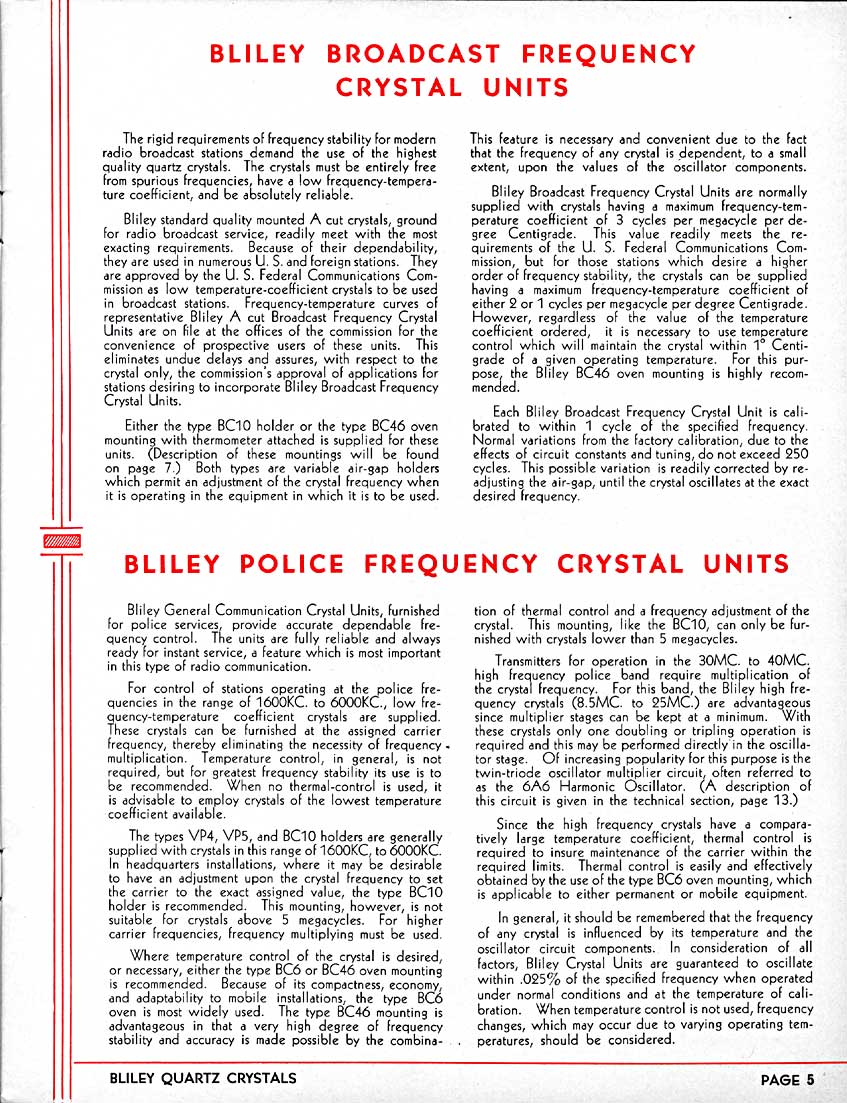

G9-Page 05
100 dpi (226K)

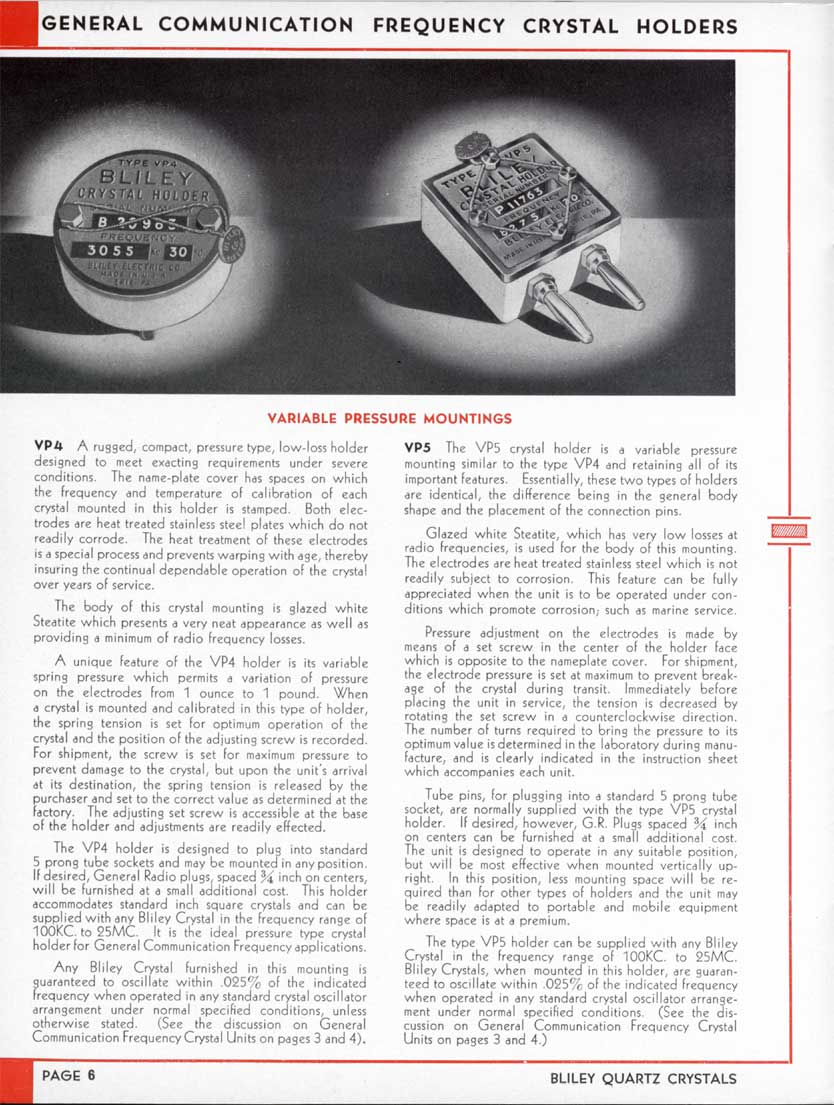

G9-Page 06
100 dpi (137K)

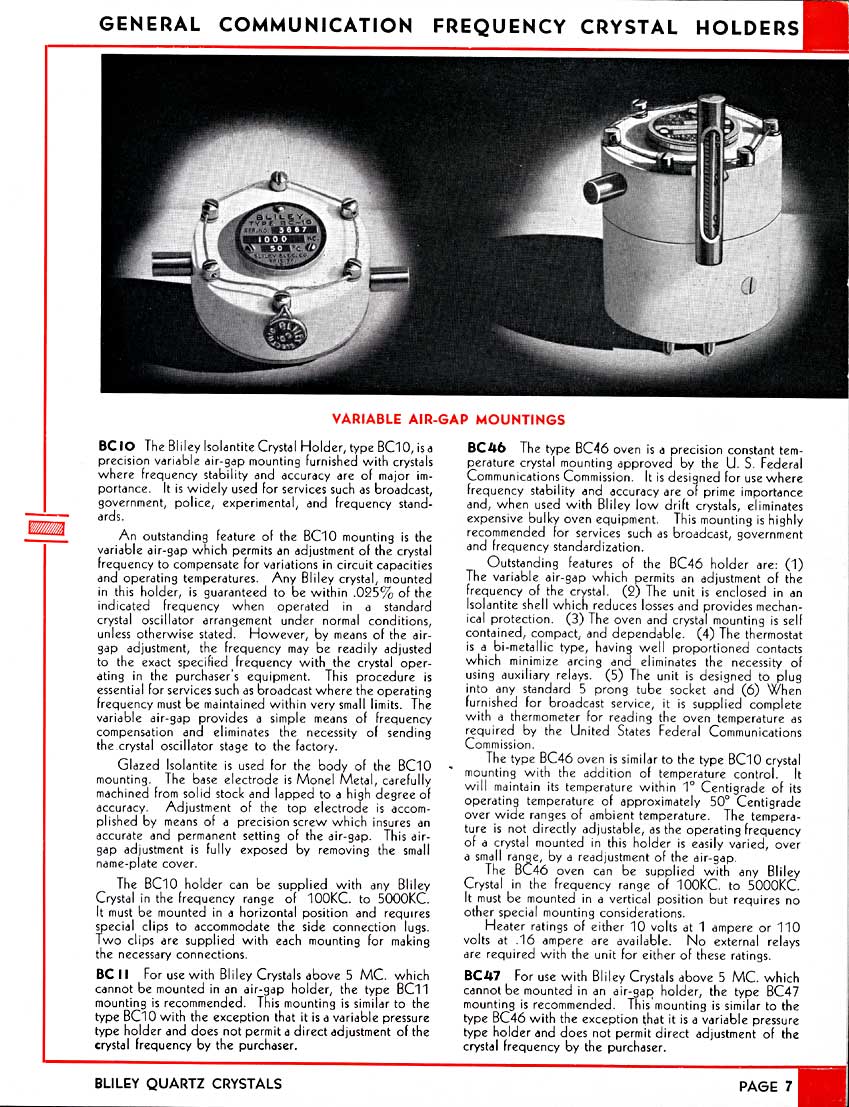

G9-Page 07
100 dpi (205K)


G9-Page 08
100 dpi (167K)

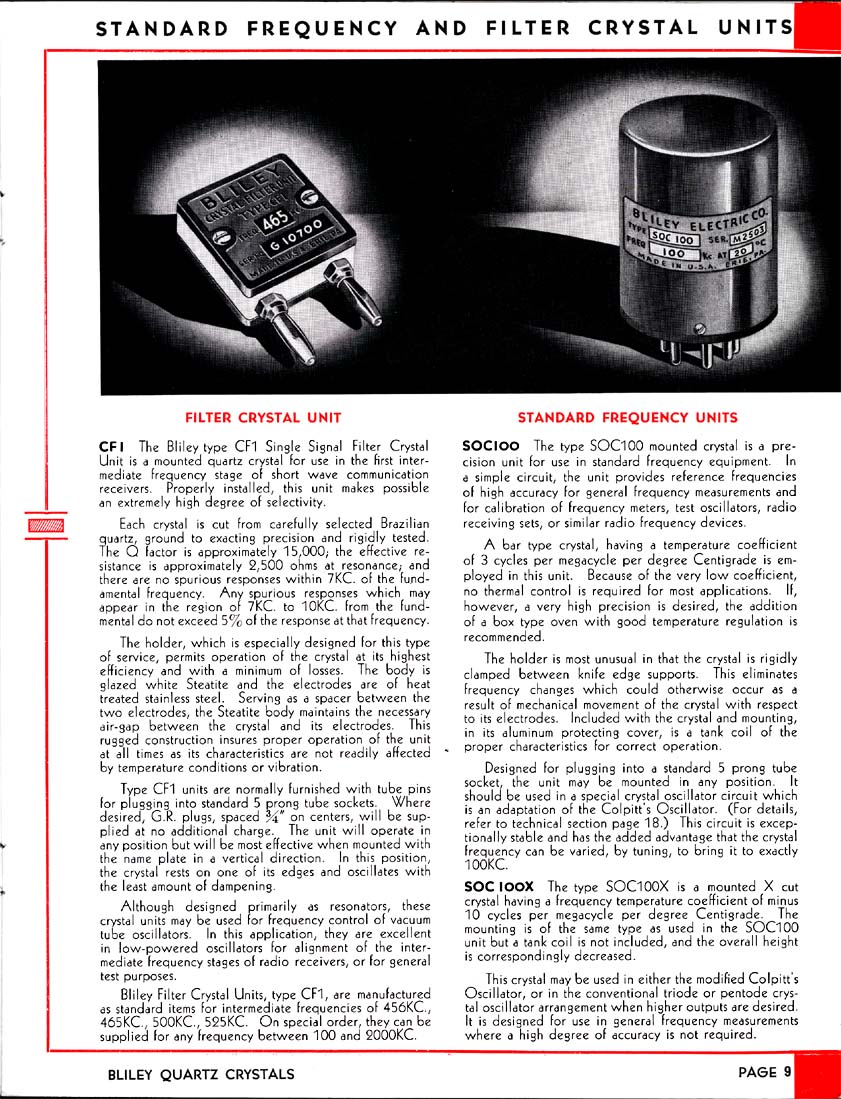

G9-Page 09
100 dpi (262K)

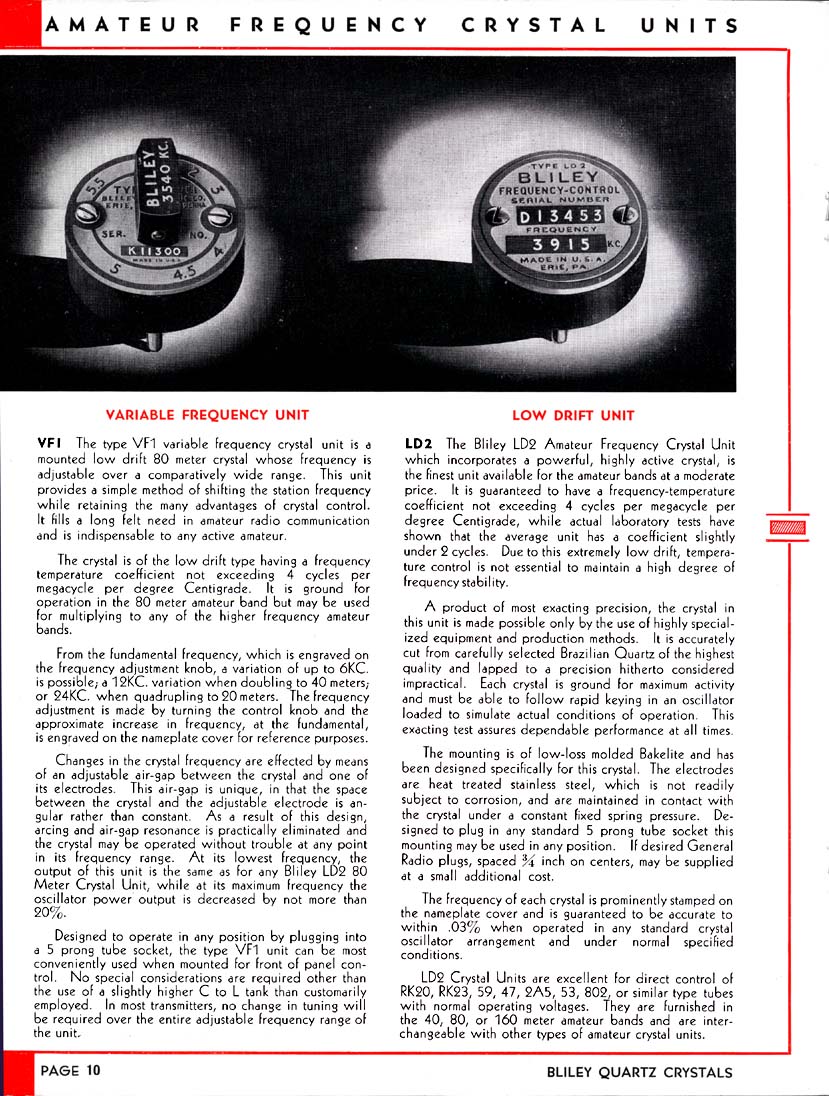

G9-Page 10
100 dpi (255K)


G9-Page 11
100 dpi (279K)

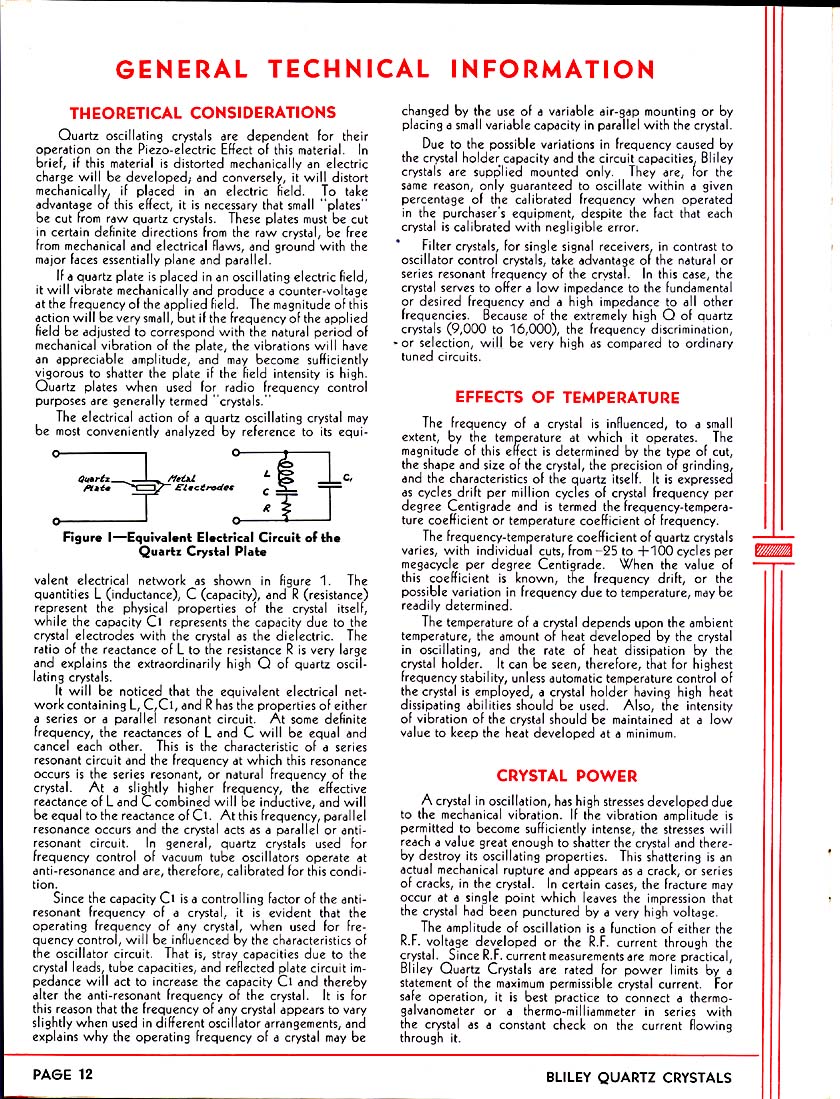

G9-Page 12
100 dpi (347K)

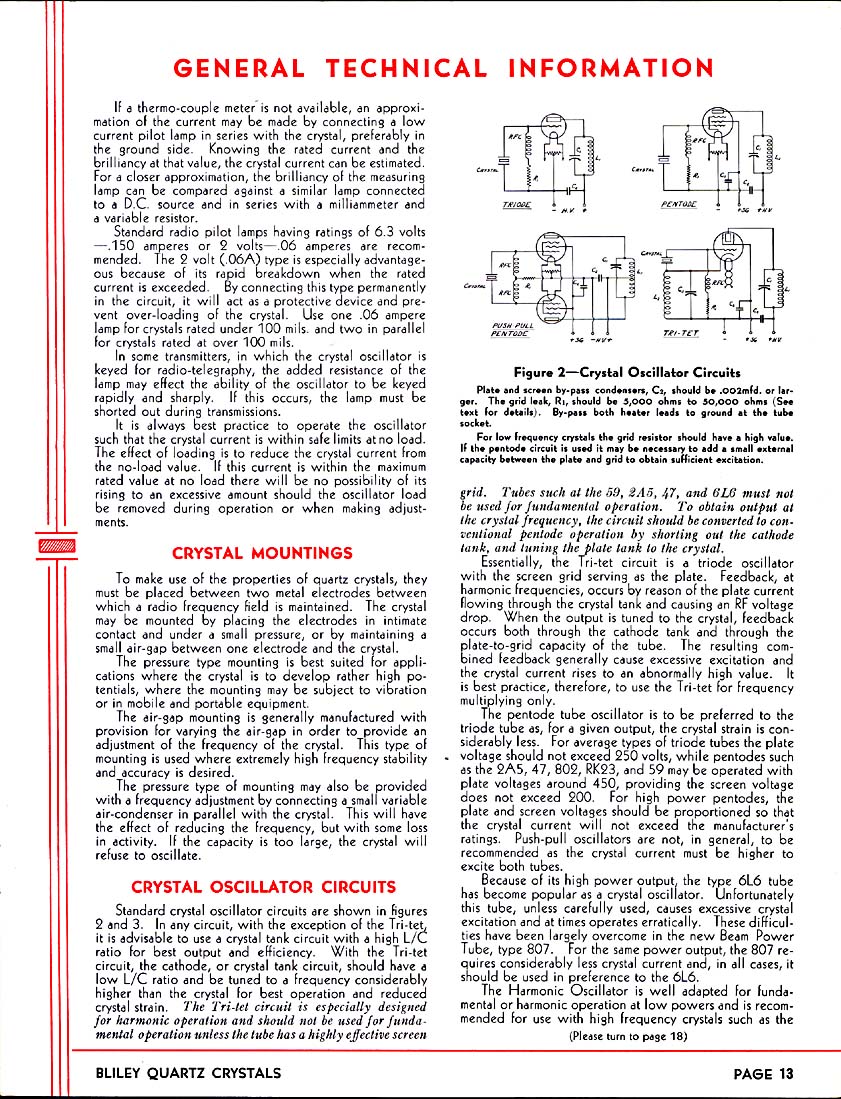

G9-Page 13
100 dpi (328K)


G9-Page 14
100 dpi (209K)

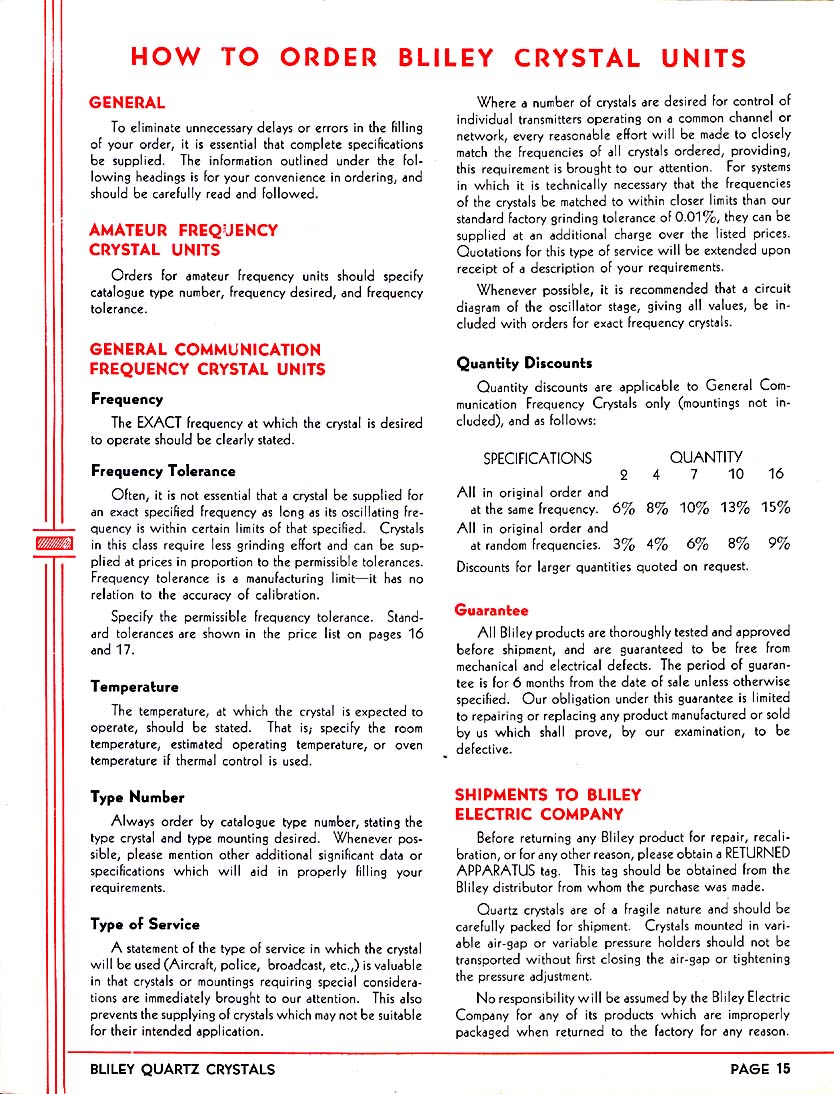

G9-Page 15
100. dpi (259K)

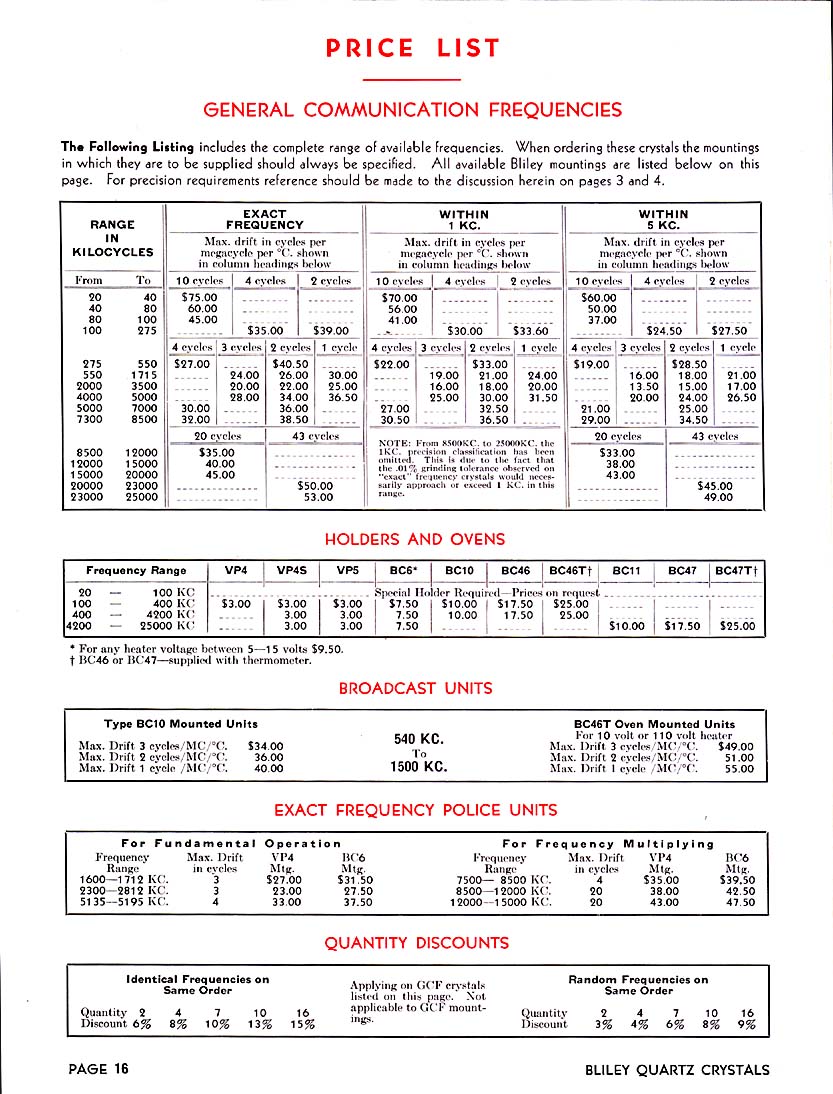

G9-Page 16
100 dpi (202K)

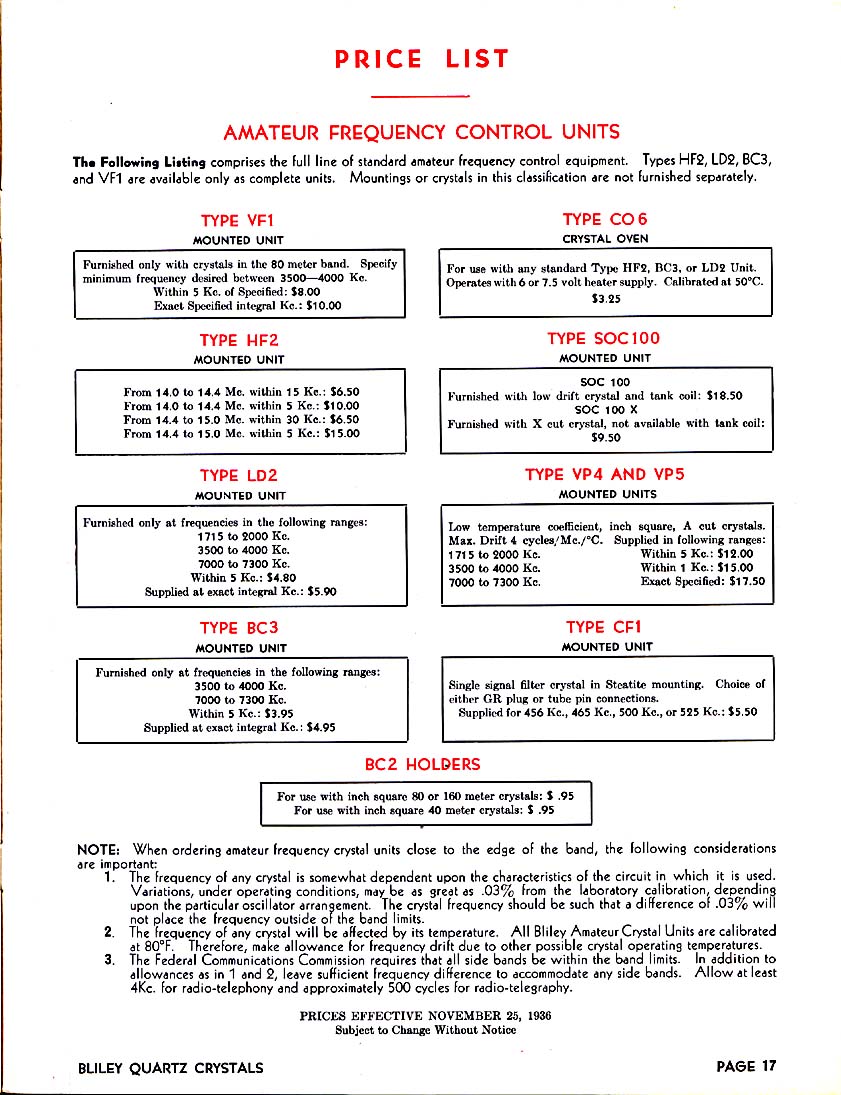

G9-Page 17
100 dpi (200K)

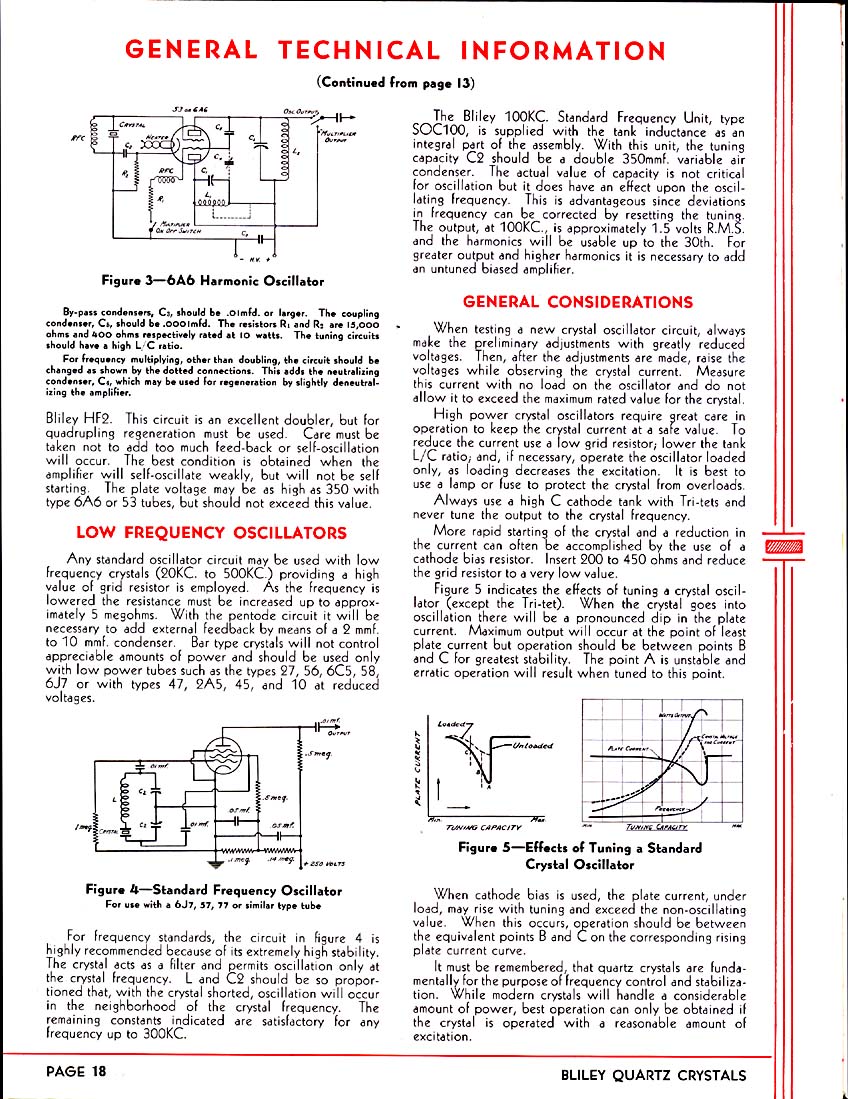

G9-Page 18
100 dpi (289K)

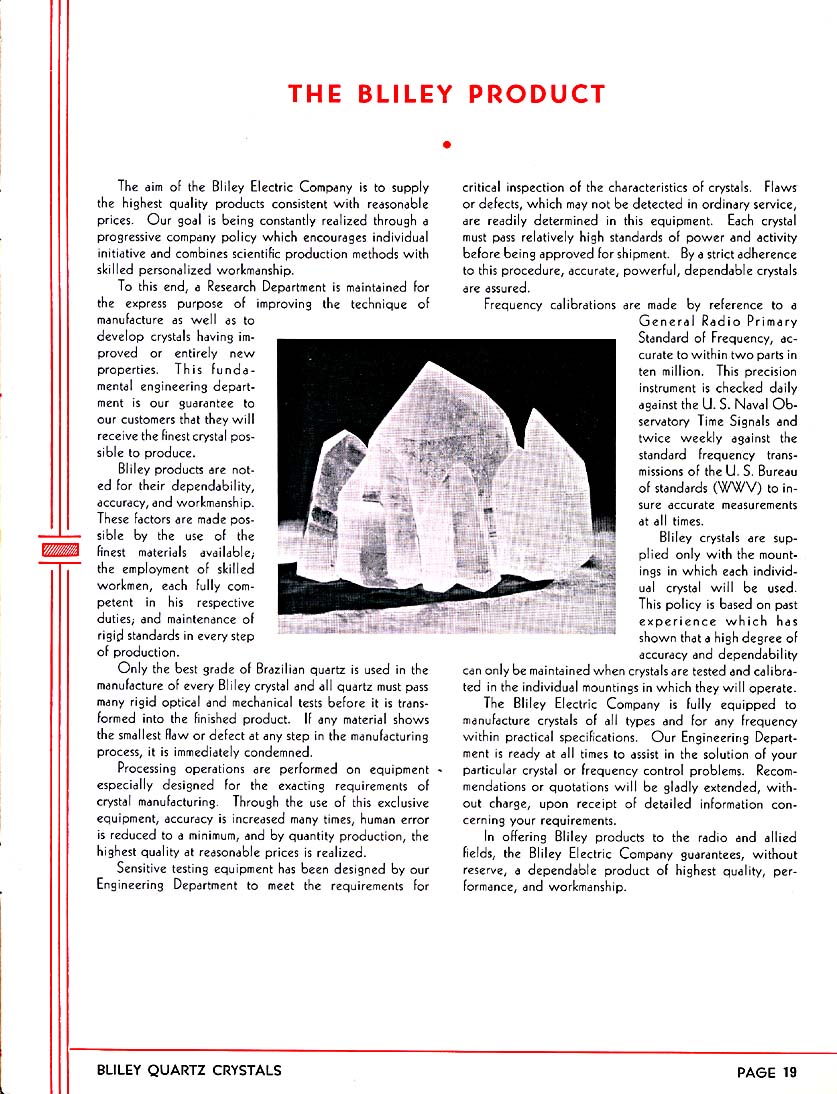

G9-Page 19
100 dpi (226K)

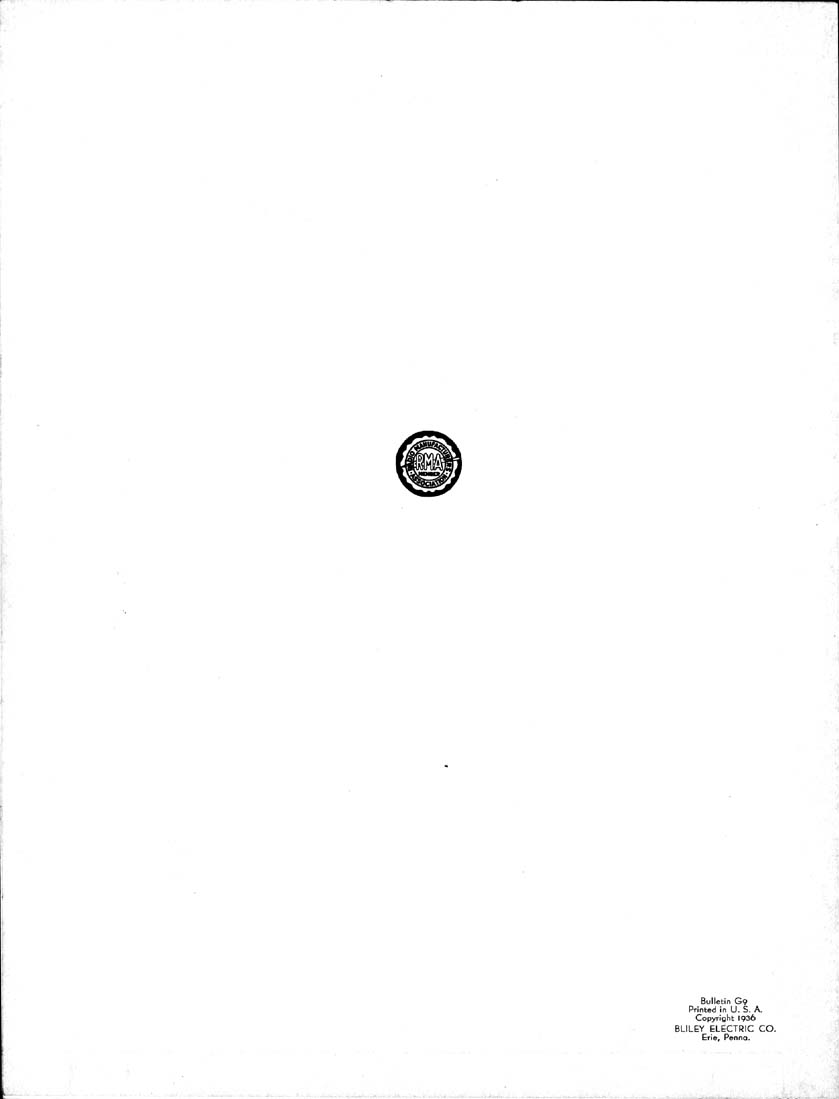

G9-Page 20
100 dpi (26K)
